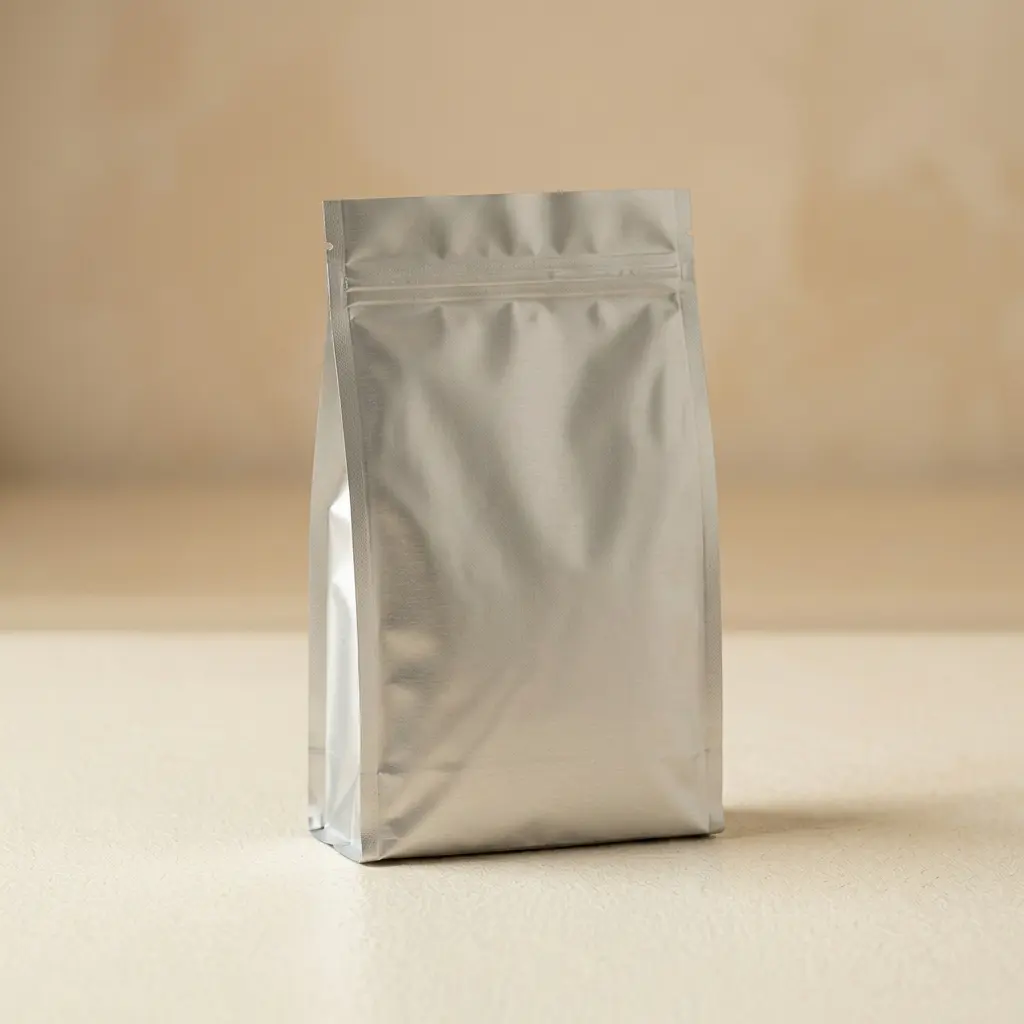

Aluminum Foil Heat-seal Bag | 3-Layer PET/AL/PE Construction
The Aluminum Foil Heat-seal Bag is a high-performance barrier packaging pouch engineered for electronics components, moisture-sensitive devices (MSDs), and precision industrial parts that require simultaneous ESD shielding and hermetic moisture protection. Built on a 3-layer PET/AL/PE laminate, the continuous 7–12 micron solid aluminum foil core forms a true Faraday cage — reducing a 1,000V external ESD pulse to less than 20V at the component — while delivering near-zero moisture vapor transmission for long-term storage integrity. The heat-seal closure, fused at 130–160°C using a standard impulse sealer, creates an airtight, tamper-evident bond compliant with JEDEC J-STD-033 moisture barrier bag (MBB) requirements. Manufactured at our Suzhou facility and supplied to electronics manufacturers and distributors across Southeast Asia.
Structure & Materials
Optional 4-layer PET/AL/PA/PE construction available for components with sharp edges or where additional puncture resistance is required.
Product Specifications
| Material Structure | PET / AL / PE (3-layer); PET / AL / PA / PE (4-layer option) |
| Aluminum Foil Thickness | 7–12 microns (solid foil) |
| Total Bag Thickness | 0.10 mm / 0.14 mm (customizable) |
| Surface Resistance | 10⁸–10¹⁰ Ω |
| Static Discharge Time | < 0.05 seconds |
| Friction Voltage | < 50V |
| Heat-seal Temperature | 130–160°C (standard impulse heat sealer) |
| Internal RH (sealed + desiccant) | < 10% RH |
| Custom Size | Max width 1500 mm; length fully customizable |
| Color / Print | Silver default; 1–8 color custom printing on outer PET |
| Compliance | JEDEC J-STD-033 · ANSI/ESD S20.20 · IEC 61340-5-1 |
| MOQ | Low MOQ supported; samples available |
Applications
Electronics Components & MSDs
IC chips, BGA packages, QFP/QFN, PCBs, semiconductors, and JEDEC MSL 2+ classified devices. Sealed with desiccant maintains <10% RH — preventing the popcorn cracking effect during SMT reflow.
Precision Industrial Parts
Optical instruments, sensors, precision metal components. Corrosion and oxidation protection during factory storage and sea freight — integrity maintained for years when properly sealed.
Long-term Storage & Export Shipment
Safety stock and ocean freight to Southeast Asia (SG, MY, VN, TH, ID). The heat-seal closure provides tamper evidence and eliminates the resealing risk of zip-lock alternatives during multi-leg logistics.
ESD-sensitive Assembly Lines
Faraday cage shielding protects components from electrostatic discharge during inbound goods receiving, kitting, and floor-level handling in ANSI/ESD S20.20-compliant production environments.
Customization
Frequently Asked Questions
What is the difference between this bag and an aluminum-plated (metallized) bag?
This bag uses a continuous solid aluminum foil layer (7–12 microns) that delivers near-zero moisture and oxygen transmission and full Faraday cage ESD shielding. Aluminum-plated (metallized) bags have a far thinner vacuum-deposited aluminum coating (0.01–0.05 microns) — suitable for general moisture and light protection, but not ESD shielding or JEDEC MBB compliance. For cost-effective non-ESD barrier packaging, see our Aluminum-plated Foil Bag.
Is this bag JEDEC J-STD-033 compliant?
Yes. When heat-sealed with silica gel desiccant, the bag maintains internal humidity below 10% RH — meeting moisture barrier bag (MBB) requirements for MSL 2 and above component storage and international shipment.
What heat sealer equipment is needed?
A standard impulse heat sealer set to 130–160°C is sufficient for a hermetic closure. For vacuum-sealed packaging, use a vacuum sealer with integrated heat-seal function. Once sealed, the closure cannot be reopened without cutting the bag, providing tamper evidence.
Can I order custom sizes and printed bags?
Yes. All dimensions are custom manufactured, and printing (logo, part number, ESD symbols, handling text) is available on the outer PET layer. Low MOQ orders are supported. Contact us for a quote within 24 hours.
Related Products
Suitable for distributors and manufacturers across Vietnam, Thailand, Malaysia, Singapore, and Indonesia. Contact us to verify compliance requirements for your specific market.
| Minimum Order | Flexible — contact us with your target quantity for confirmation |
| Sample Order | Available — sample cost refunded on first bulk order |
| Custom Print | Logo, design, and color printing supported (gravure up to 8 colors) |
| Custom Size | Full dimension customization available with no tooling fee (standard construction) |
| Lead Time | Stock sizes: 3–7 days · Custom production: 10–18 working days |
| Packaging | Export carton with inner poly-bag grouping; labeling to buyer spec |
All dimensions are fully customizable. Send your target size and quantity to [email protected] — we'll confirm feasibility and pricing within 24 hours.
Product data sheets and test reports are available upon request. Email [email protected] with your product and application details.
