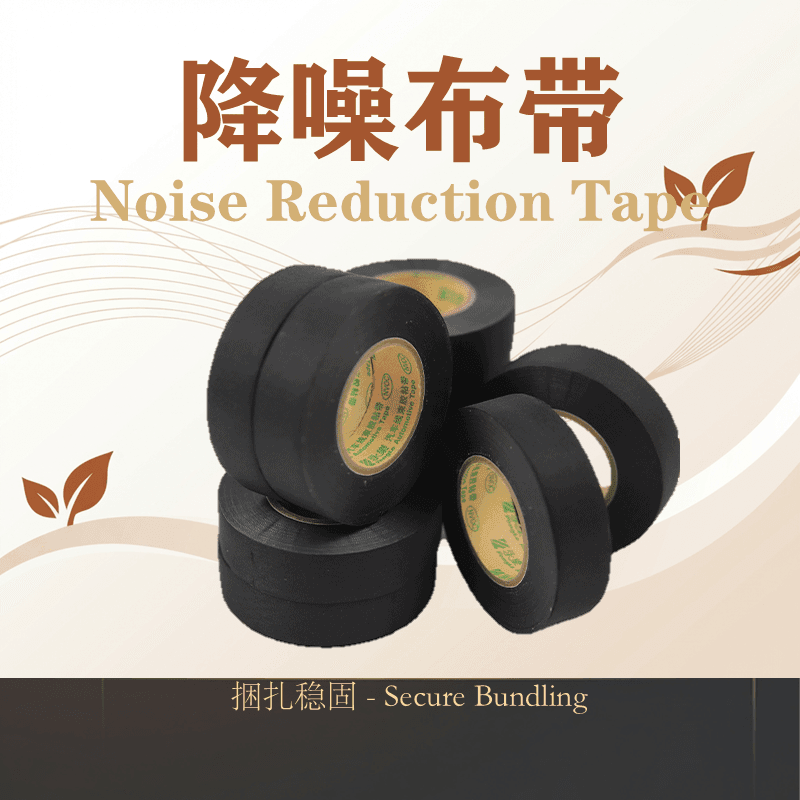

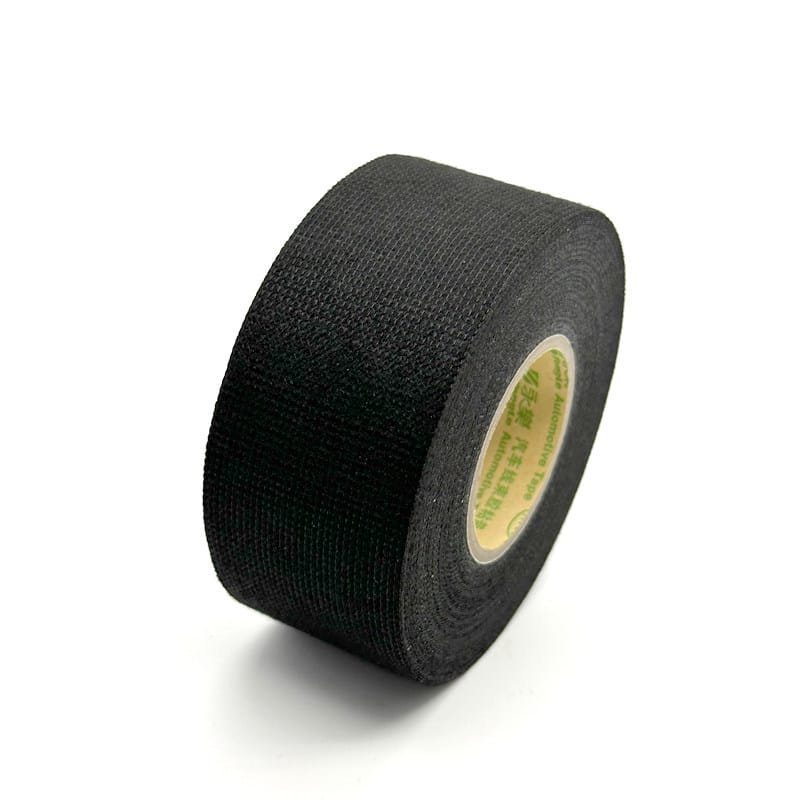

Self-Adhesive Felt Cloth Electrical Tape
Self-adhesive felt cloth electrical tape is a soft polyester velours (felt) wiring tape engineered for automotive harness wrapping where noise dampening and gentle abrasion protection matter most. Its non-woven felt backing is far softer than woven cloth harness tape, protecting delicate wire insulation while suppressing rattle and vibration noise inside the loom. Low-VOC and RoHS/REACH compliant, it is built for interior and infotainment harnesses where cabin quietness and low emissions are required. Manufactured at our Suzhou facility and supplied to automotive harness assemblers across Southeast Asia.
Structure & Materials
Key Features
The polyester velours (felt) backing is significantly softer than woven cloth harness tape, protecting delicate wire insulation, ribbon cables, and thin-gauge conductors without abrading them during installation and service.
The dense felt structure absorbs vibration energy and suppresses cable rattle and contact noise — a primary reason it is specified for automotive interior and infotainment harnesses where cabin quietness matters.
Low-VOC, low-odour formulation compliant with RoHS and REACH, suited to enclosed vehicle interiors with strict emissions and air-quality requirements.
The pressure-sensitive adhesive bonds on contact to wire insulation, cable jackets, and connector housings — no wrapping tools, heat, or fasteners required — with a balanced unwind force for fast hand application.
Resists abrasion, oils, corrosion, and ageing, holding bundles protected and quiet across the service life of the vehicle.
Rated from −40°C to 105°C (T2 / 105°C class), covering the full thermal range of automotive interior and body harness routing.
Specifications
| Backing Material | Polyester velours (felt) |
|---|---|
| Adhesive | Pressure-sensitive adhesive |
| Total Thickness | 0.27mm |
| Temperature Class | −40°C to 105°C (T2 / 105°C) |
| Standard Widths | 19mm · 25mm · Custom |
| Roll Length | 20m · Custom |
| Color | Black |
| Compliance | RoHS · REACH · Low VOC |
| OEM Approvals | Ford / Valeo |
Applications
Automotive Interior & Infotainment Wiring
Wrapping interior, dashboard, and infotainment harnesses where soft, low-noise, low-VOC protection is required close to the cabin.
Noise-Sensitive Harness Routing
Suppressing rattle and contact noise where cables run against panels, brackets, and adjacent bundles in noise-sensitive zones.
Delicate Conductor & Ribbon Cable Protection
Gentle protection for thin-gauge conductors and flat cables whose insulation would be abraded by stiffer woven cloth tape.
Abrasion Protection in Routed Looms
Protecting harnesses at light-to-moderate chafe points while keeping the bundle soft, flexible, and quiet.
Customization
Frequently Asked Questions
How is felt (velours) tape different from woven cloth harness tape?
Felt tape uses a soft polyester velours backing that is far softer than woven cloth, giving higher noise dampening and gentler protection for delicate insulation. Woven cloth harness tape is stiffer and built for structural abrasion-resistant bundling. For the woven-cloth option, see our Wiring Harness Tape.
Is this tape suitable for automotive interior applications?
Yes. Its low-VOC, RoHS/REACH-compliant felt construction and strong noise dampening make it well suited to interior, dashboard, and infotainment harnesses where cabin quietness and low emissions are required, across a −40°C to 105°C range.
What widths and lengths are available?
Standard widths are 19mm and 25mm on 20m rolls, in black. Custom widths, lengths, and noise/abrasion grades are available on request to suit your harness diameter and line setup.
Related Products
Suitable for distributors and manufacturers across Vietnam, Thailand, Malaysia, Singapore, and Indonesia. Contact us to verify compliance requirements for your specific market.
| Minimum Order | Flexible — contact us with your target quantity for confirmation |
| Sample Order | Available — sample cost refunded on first bulk order |
| Custom Print | Logo, design, and color printing supported (gravure up to 8 colors) |
| Custom Size | Full dimension customization available with no tooling fee (standard construction) |
| Lead Time | Stock sizes: 3–7 days · Custom production: 10–18 working days |
| Packaging | Export carton with inner poly-bag grouping; labeling to buyer spec |
All dimensions are fully customizable. Send your target size and quantity to [email protected] — we'll confirm feasibility and pricing within 24 hours.
Product data sheets and test reports are available upon request. Email [email protected] with your product and application details.
Email [email protected] or WhatsApp +86 186 6215 2620 with your dimensions and quantity. We respond within 24 hours.
