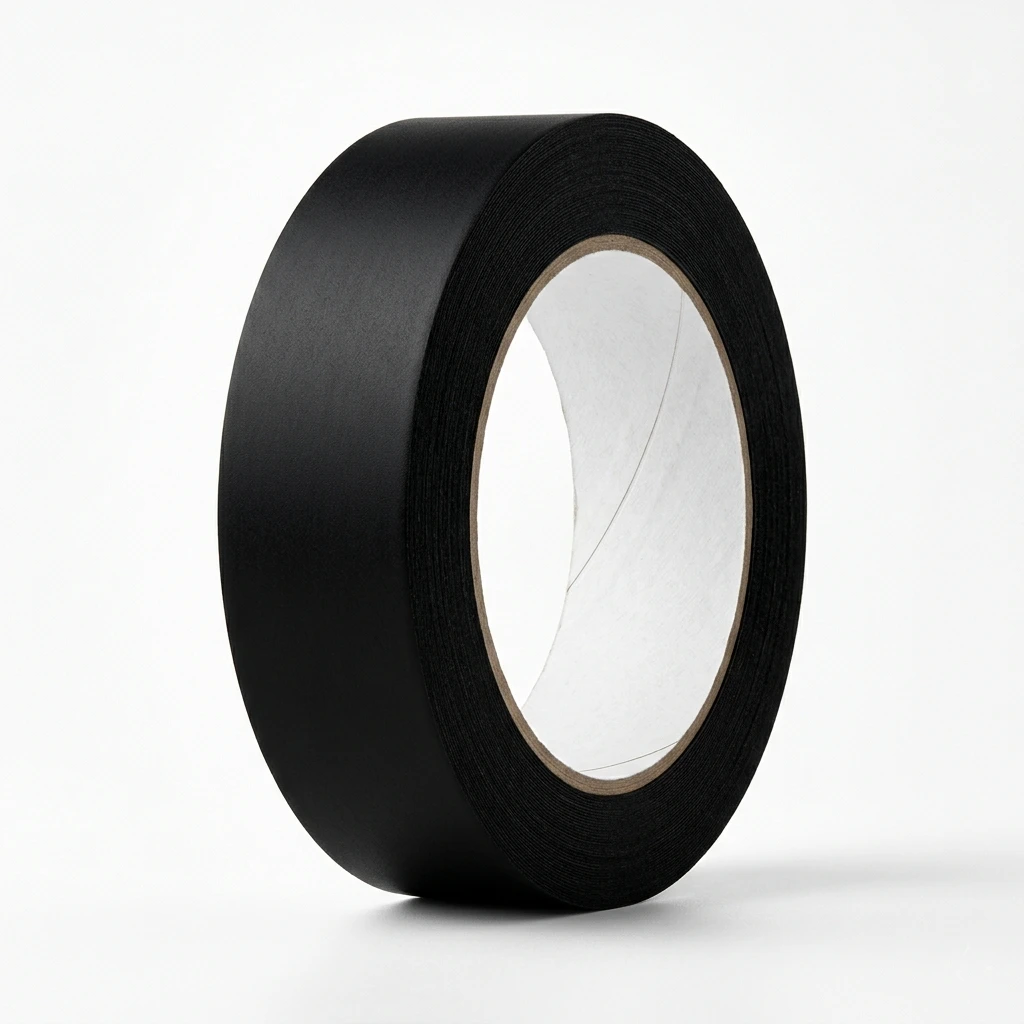

Black Polyimide Light-Blocking Tape

Black polyimide light-blocking tape combines a thin polyimide film with a matte black surface and a pressure-sensitive adhesive. It is developed for electronic and optical assemblies that need heat resistance, electrical insulation, controlled reflectivity, and reduced light transmission in one compact material. Typical uses include display modules, camera assemblies, sensors, optical instruments, battery packs, and internal electronic components where ordinary amber tape would remain visually or optically transparent.

Key Benefits

• Light-control options: high-opacity black constructions help limit light leakage and backlight crosstalk.
• Matte appearance: low-gloss surface options reduce visible reflections inside compact optical assemblies.
• High-temperature film: polyimide backing supports demanding electronics assembly and thermal-processing conditions.
• Electrical insulation: thin film separates conductive parts without adding unnecessary thickness.
• Precision converting: suitable for narrow slitting and die-cut shapes used around lenses, displays, sensors, and battery components.

Typical Applications

• LCD and OLED display module edge masking
• Camera, lens, and image-sensor assemblies
• Backlight leakage control in consumer electronics
• Laser and optical instrument interior masking
• Battery cell and module insulation where black appearance is required
• Internal wire, connector, and component fixation
• Black cosmetic masking for compact electronic products

Typical Specifications

Black appearance does not by itself guarantee complete blocking at every wavelength. Final opacity, optical density, gloss, adhesion, dielectric strength, temperature rating, and residue requirement are confirmed for the quoted grade.

Optical Selection Guidance

For display and camera applications, specify the wavelength range, maximum permitted transmission, viewing angle, gloss requirement, and the location of the tape relative to the light source or sensor. Visible-light opacity may not predict infrared performance, and a visually black tape can still transmit energy outside the tested range. Where optical performance is critical, request data for the required wavelength and validate a converted sample in the final assembly.

Matte surface texture also matters. A low-gloss finish can reduce reflections, but the correct result depends on assembly geometry, nearby surfaces, adhesives, and incident angle. Die-cut edge quality and dimensional tolerance are important around camera apertures and narrow display borders.

Thermal and Adhesive Validation

Confirm peak temperature, dwell time, number of cycles, substrate, removal timing, and any cleaning chemicals. Silicone adhesive is often selected for elevated-temperature use, but adhesion and residue behavior vary on glass, coated metal, plastics, solder mask, and battery materials. Test the tape after the complete thermal and aging cycle before production release.

Customization and Converting

Mavis can supply master rolls, narrow slit rolls, tabs, washers, frames, rings, and custom die-cut parts with or without a release liner. Provide a drawing, material thickness, width, roll direction, liner, pitch, core size, quantity, optical requirement, temperature profile, and target substrate. For automated assembly, include dimensional tolerance and splice requirements.

Frequently Asked Questions

Does black polyimide tape block 100% of light?

Performance must be defined by wavelength, transmittance or optical-density target, and test method. We can match a high-opacity grade, but the final requirement should be verified on the technical data sheet and in the finished assembly.

What is the difference from amber polyimide tape?

Amber polyimide tape is translucent and well suited to visual alignment during PCB masking. Black tape is selected where light control, reduced reflection, or black appearance is required.

Can it be die cut for camera or display modules?

Yes. Custom frames, aperture masks, rings, tabs, and roll-fed die cuts are available subject to drawing review and tolerance confirmation.

Contact Mavis with your wavelength, opacity, temperature, dimensions, and annual volume for material selection and sampling.
