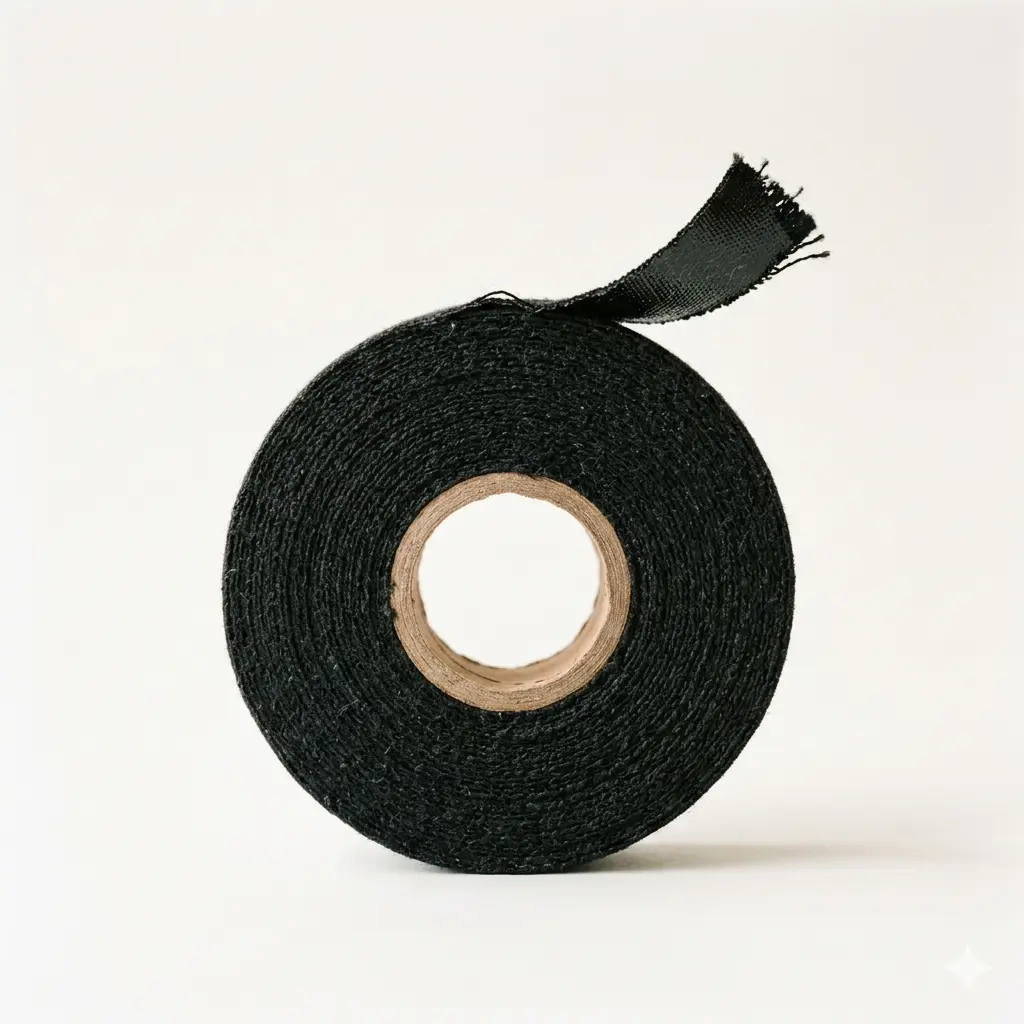

Harness Tape
Our wiring harness tape is a professional-grade woven cloth adhesive tape engineered for the bundling, protection, and routing of automotive and industrial wiring harnesses. Built on an abrasion-resistant fabric backing, it delivers the wear resistance, flexibility, noise dampening, and temperature stability that complex wire bundles need across the full service life of a vehicle or piece of equipment. Manufactured at our Suzhou facility and supplied to harness assemblers and distributors across Southeast Asia.
Structure & Materials
Key Features
Formulated specifically for automotive wiring harness applications, meeting the bundling, protection, and NVH (noise, vibration, harshness) requirements of vehicle electrical systems.
The woven cloth construction withstands rubbing against metal brackets, grommets, and adjacent cables throughout the vehicle’s service life, protecting conductors from chafe-through.
The fabric backing absorbs vibration energy and prevents rattle and contact noise between bundled cables and metal body components — a key NVH function in modern vehicles.
Cloth tape conforms easily to multi-direction bends, branch points, and irregular routing paths, wrapping tightly around T-junctions and tight-radius turns without lifting.
Tears cleanly and straight by hand in both length and width directions, enabling fast application on harness assembly lines without scissors or knives.
Rated from −40°C to 105°C and resistant to automotive fluids including oils, fuels, and cleaning solvents, holding bundles secure in under-hood and chassis environments.
Specifications
| Backing Material | Woven polyester cloth |
|---|---|
| Adhesive | Pressure-sensitive adhesive (oil & solvent resistant) |
| Temperature Range | −40°C to 105°C |
| Thickness | ~0.30mm |
| Adhesion | ~2.5 N/cm |
| Tensile Strength | ~40 N/cm |
| Abrasion Class | （LV312 / ISO 6722 等级） |
| Standard Widths | 19mm · 25mm · 32mm · 38mm · 50mm · Custom |
| Roll Length | 10m · 15m · 25m · Custom |
| Color | Black (standard) |
Applications
Automotive Wiring Harness Manufacturing
Bundling and protecting OEM and aftermarket vehicle harnesses, with abrasion protection at chafe points and NVH dampening throughout the loom.
Industrial Equipment Wiring
Securing and protecting cable bundles inside machinery, control panels, and equipment harnesses subject to vibration and mechanical wear.
Appliance & Electronics Cable Management
Routing and protecting internal wiring in appliances and electronic assemblies where clean, flexible cable bundling is required.
Commercial Vehicle Electrical Systems
Heavy-duty harness assembly for trucks, buses, and commercial vehicles, where durability and chemical resistance are critical.
Customization
Frequently Asked Questions
Does this tape meet automotive OEM specifications?
Our wiring harness tape meets the functional requirements of automotive wiring harness applications — abrasion protection, NVH dampening, and temperature stability. For OEM-specific certifications (such as LV312 abrasion class or a particular carmaker’s standard), contact us with your specification details and we’ll confirm the matching grade.
What widths are available?
Standard widths run from 19mm to 50mm. Custom widths and roll lengths are available on request to suit your harness diameter and line setup.
How is harness tape different from general cloth packaging tape?
Harness tape is engineered for wire bundling — its abrasion resistance, NVH dampening, and −40°C to 105°C rating target the under-hood and chassis environment. General cloth tape is built for sealing and bundling in packaging. If you need industrial bundling rather than vehicle harnesses, see our Cloth Tape for Industrial Packaging.
Related Products
Suitable for distributors and manufacturers across Vietnam, Thailand, Malaysia, Singapore, and Indonesia. Contact us to verify compliance requirements for your specific market.
| Minimum Order | Flexible — contact us with your target quantity for confirmation |
| Sample Order | Available — sample cost refunded on first bulk order |
| Custom Print | Logo, design, and color printing supported (gravure up to 8 colors) |
| Custom Size | Full dimension customization available with no tooling fee (standard construction) |
| Lead Time | Stock sizes: 3–7 days · Custom production: 10–18 working days |
| Packaging | Export carton with inner poly-bag grouping; labeling to buyer spec |
All dimensions are fully customizable. Send your target size and quantity to [email protected] — we'll confirm feasibility and pricing within 24 hours.
Product data sheets and test reports are available upon request. Email [email protected] with your product and application details.
