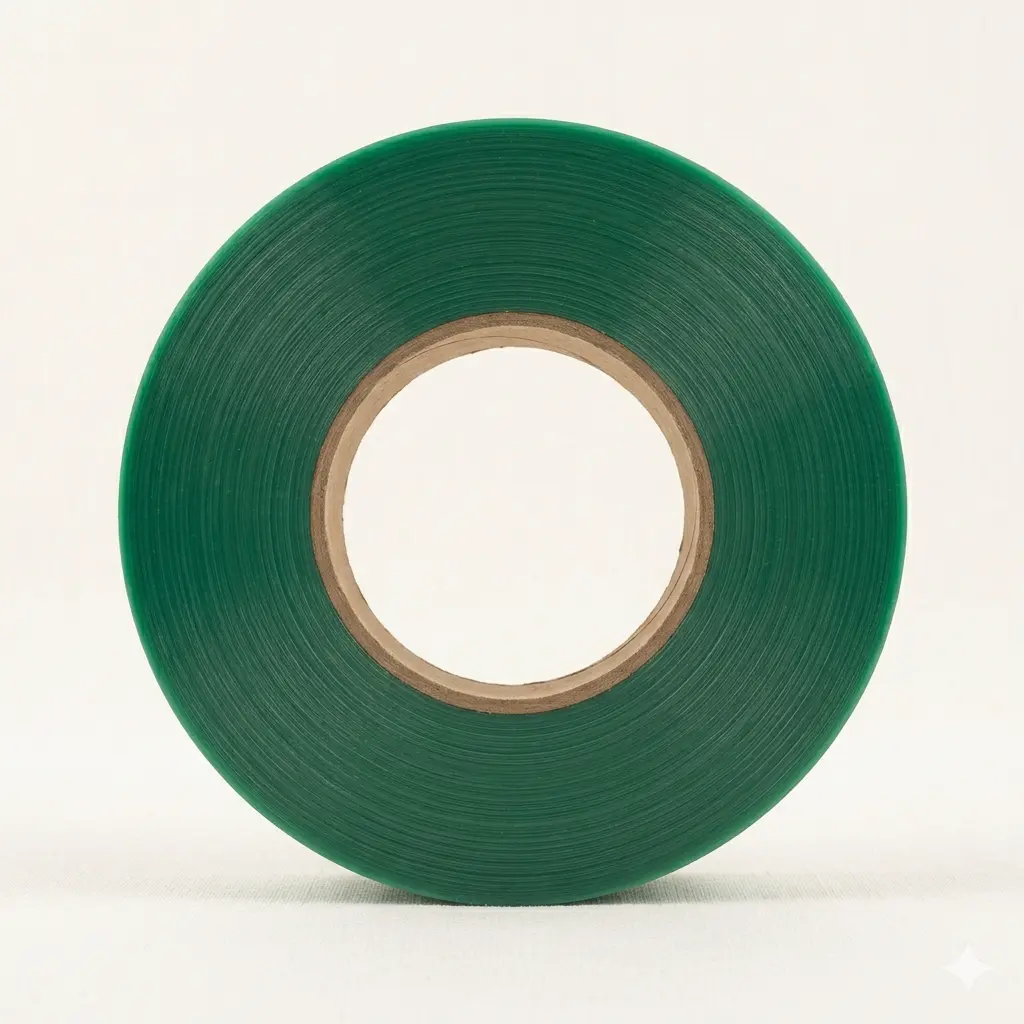

No Residue Green Tape
No Residue Green Tape is a silicone adhesive PET polyester masking tape engineered around a single critical performance requirement: zero adhesive residue on every surface, every removal, every time. Where standard green PET tape may leave light adhesive ghosting on certain substrates after high-temperature processing, the adhesive formulation in this tape is specifically optimized for clean release — making it the correct specification for powder coating, precision electronics masking, and any process where adhesive contamination of the protected surface would cause a quality failure downstream.
Why Zero Residue Matters
In most masking tape applications, “no residue” is a convenience feature. In certain processes, it is a functional requirement. Adhesive residue left on a PCB surface after solder masking can interfere with conformal coating adhesion — causing delamination in the field. Residue on a powder-coated mating surface prevents proper assembly torque and sealing. Residue on a plated contact pad increases contact resistance and causes intermittent failures.
Standard silicone adhesive tapes perform well at rated temperatures, but the adhesive can undergo partial crosslinking at elevated temperatures, leaving a thin transfer film on certain substrates — particularly bare copper, ENIG finish, and anodized aluminum. The adhesive in No Residue Green Tape is formulated with a higher-purity silicone system and tighter crosslink density that prevents this transfer, delivering a genuinely clean surface after every removal regardless of thermal cycling history.
Key Features
Clean release confirmed on FR4 PCB, bare copper, ENIG, HASL, OSP surface finishes, anodized aluminum, stainless steel, powder-coated steel, and most engineering plastics. No adhesive film, no ghost marks, no ionic contamination requiring post-process cleaning.
Clean release does not mean weak adhesion during the process. The tape bonds firmly to all listed substrates on application and maintains that bond throughout thermal processing — no lifting at tape edges, no solder or coating bleed-under, no tape migration during conveyor handling.
Green PET film base maintains dimensional stability at temperatures up to 180°C continuous, with short-term peak resistance to 200°C — covering the full powder coating cure cycle and standard wave soldering profiles. The tape does not shrink, wrinkle, or lose edge definition under sustained heat.
Equally specified for powder coating masking on industrial metal components and for electronics assembly masking on PCBs and precision electronic parts. The same zero-residue requirement appears in both industries — and the same adhesive system delivers it in both environments.
PET film tears cleanly by hand at precise cut points — no scissors required on the powder coating or PCB assembly line. Consistent film properties ensure a straight, controlled tear edge every time.
Available from 3mm for precision PCB connector pin masking up to 50mm and custom widths for broad-area powder coating masking. All widths are slit from master rolls to your specification.
Specifications
| Film Material | Green PET Polyester |
|---|---|
| Adhesive | High-purity Silicone PSA — zero-residue optimized formulation |
| Temperature Resistance | Continuous 180°C · Peak 200°C (short-term) |
| Thickness | 0.055–0.08mm |
| Adhesion | 8–12 N/25mm |
| Standard Widths | 3mm · 5mm · 8mm · 10mm · 15mm · 20mm · 25mm · 50mm · Custom |
| Roll Length | 33m · 66m · Custom |
| Residue on Removal | Zero — no adhesive transfer on listed substrates |
| Substrates | FR4 · Bare copper · ENIG · HASL · OSP · Anodized Al · Stainless steel · Powder-coated steel · Engineering plastics |
| Color | Green |
| Compliance | RoHS |
⚠️ 请核对：厚度和粘力为参考值，上线前请与工厂确认实际数据。
Applications
Powder Coating — Mating Surfaces & Threaded Features
Masking of threaded holes, bearing seats, electrical contact points, and precision mating surfaces during powder coating cure at 160–200°C. On these surfaces, any adhesive residue remaining after tape removal will interfere with assembly fit, sealing torque, or electrical contact — making zero-residue performance a functional requirement, not a preference. No cleaning step required after tape removal.
PCB Assembly — Post-masking Process Sensitivity
PCB areas where conformal coating, adhesive bonding, or wire bonding will follow the masking step. Silicone contamination from standard tape adhesive at these locations can prevent proper adhesion of the subsequent material. No Residue Green Tape eliminates this risk — the surface is chemically clean after removal and requires no solvent wipe-down before the next process step.
Anodizing & Surface Treatment Masking
Masking of precision-located features on aluminum components during anodizing, chromate conversion coating, and similar wet chemical surface treatments. On anodized aluminum surfaces, adhesive residue from standard tapes is particularly difficult to remove without damaging the anodized layer — zero-residue tape eliminates post-treatment cleaning risk entirely.
Precision Metal Components — Inspection-Critical Surfaces
Masking of optical surfaces, sensor windows, precision-ground contact faces, and other surfaces that are visually or dimensionally inspected after processing. Any adhesive residue on these surfaces causes inspection failures and rework. Zero-residue removal guarantees the surface condition after tape removal matches the surface condition before masking.
When to Specify No Residue Tape vs Standard Green PET Tape
| Situation | Specify |
|---|---|
| General powder coating, wave soldering, anodizing — no sensitive downstream process | Green PET Tape (Standard Grade) |
| Lead-free reflow soldering (peak 260°C) | Green PET Tape (High Temp Grade) |
| Powder coating on mating/contact surfaces — no residue is a functional requirement | No Residue Green Tape ← this page |
| PCB masking where conformal coating or adhesive bonding follows | No Residue Green Tape ← this page |
| Anodized aluminum — cannot clean residue without damaging surface | No Residue Green Tape ← this page |
| Masking requires zero ionic contamination + RoHS/REACH documentation | PCB Masking Tape |
| Conformal coating compatibility — anti-silicone contamination required | Green Heat Resistant Tape |
Customization & MOQ
| Minimum Order | Flexible — contact us with your target quantity for confirmation |
|---|---|
| Sample Order | Available — sample cost refunded on first bulk order |
| Custom Width | Any width from 3mm; slit to specification |
| Die-cut Shapes | Available for specific masking patterns on request |
| Lead Time | Stock sizes: 3–7 days · Custom production: 10–18 working days |
| Packaging | Export carton with inner poly-bag grouping; labeling to buyer spec |
Send your substrate material, process temperature, required width, and target quantity to [email protected] — we’ll confirm zero-residue suitability for your specific substrate and pricing within 24 hours.
FAQ
How is this tape different from standard green PET tape?
The adhesive formulation is the critical difference. Standard green PET tape uses a general-purpose high-temperature silicone adhesive that performs well in most applications but can leave a thin transfer film on certain substrates after thermal cycling — particularly bare copper, ENIG, and anodized aluminum. No Residue Green Tape uses a higher-purity silicone system with tighter crosslink density specifically engineered to prevent adhesive transfer. If residue-free removal is a quality requirement rather than a preference, specify this tape.
Which surfaces is zero-residue performance confirmed on?
FR4 PCB, bare copper, ENIG, HASL, OSP, anodized aluminum, stainless steel, powder-coated steel, and most engineering plastics. For substrates not listed here — particularly specialty coatings, optical glass, or non-standard alloys — request a sample for application testing before volume commitment.
Is this tape suitable for lead-free reflow soldering?
This tape is rated to peak 200°C (short-term), which covers standard wave soldering and powder coating profiles but does not meet lead-free reflow peak temperature requirements (250–260°C). For lead-free SMT reflow applications, specify our Green PET Tape High Temp Grade instead.
Does this tape prevent silicone contamination for conformal coating?
No Residue Green Tape eliminates adhesive residue transfer, which addresses one form of surface contamination before conformal coating. However, if your process requires a tape with an anti-silicone adhesive formulation — specifically to prevent silicone migration that would interfere with conformal coating or adhesive bonding — specify our Green Heat Resistant Tape, which uses an anti-silicone adhesive system designed for this requirement.
