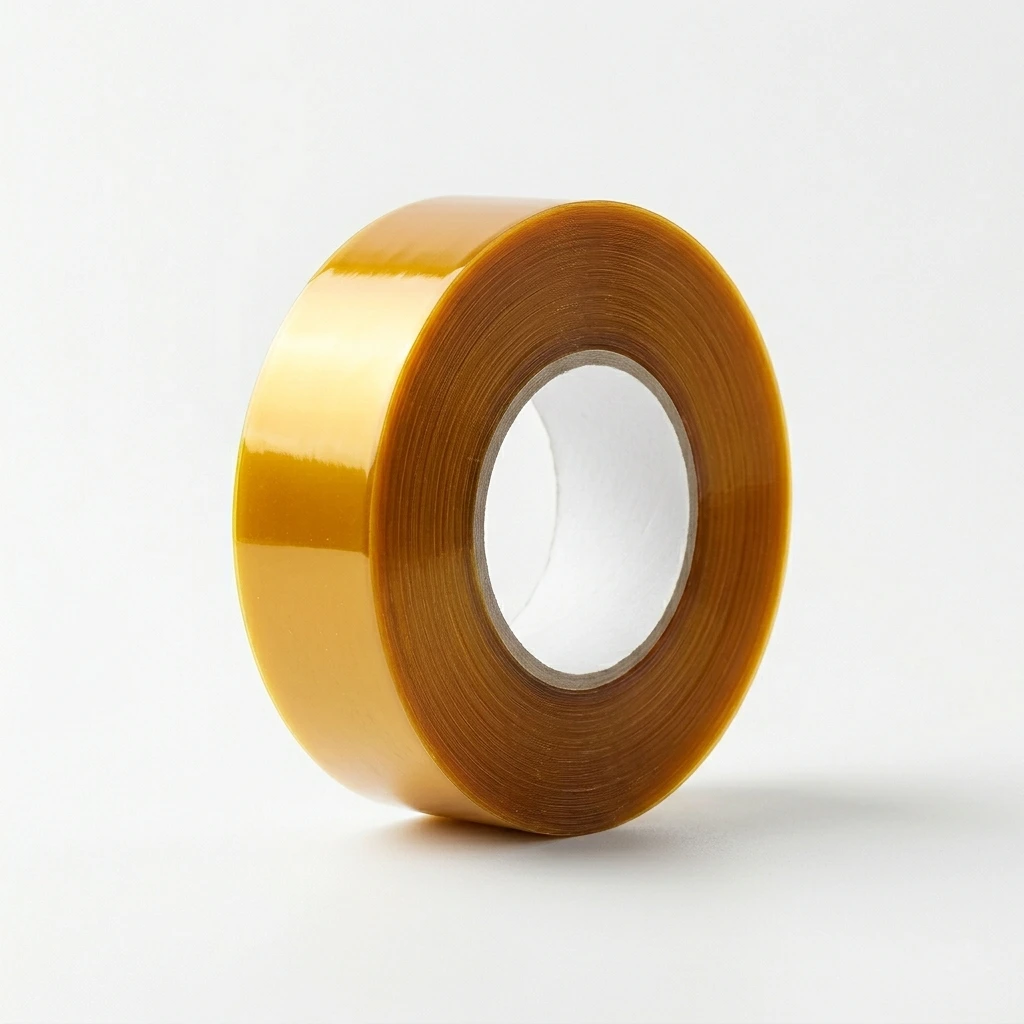

Amber Polyimide PCB Masking Tape (Gold Finger)

Amber polyimide PCB masking tape is a thin, high-temperature tape made from polyimide film with a pressure-sensitive silicone adhesive. Its transparent amber color makes placement easy to inspect during assembly, while the film provides dimensional stability and electrical insulation in compact electronic processes. It is commonly used to protect gold fingers, contacts, pads, connectors, and heat-sensitive areas during wave soldering, reflow, coating, plating, and related manufacturing steps.

Key Benefits

• High-temperature masking: suitable grades maintain shape through short soldering and thermal-processing cycles.
• Precise visual placement: the amber translucent film helps operators align tape over contacts and small PCB features.
• Thin, conformable backing: follows flat boards, edges, terminals, and small components without excessive bulk.
• Electrical insulation: polyimide film is widely used around coils, flex circuits, batteries, and electronic assemblies.
• Controlled removal: silicone adhesive grades are designed for temporary masking, subject to process temperature, dwell time, and surface condition.

Typical Applications

• Gold-finger and edge-connector masking during wave soldering
• PCB pad, contact, and terminal protection during reflow
• Selective plating, coating, painting, and powder-coating masking
• Flexible printed circuit reinforcement and temporary positioning
• Transformer coil wrapping and electronic component insulation
• Fixture protection and temporary holding during assembly

Typical Specifications

The table describes common configurations. Final film source, thickness, adhesion, temperature rating, dielectric performance, residue requirement, and tolerances are confirmed for the quoted grade. A specific trademarked film or certification is supplied only when explicitly identified in the quotation.

How to Select PCB Masking Tape

Provide the peak process temperature, time above temperature, number of thermal cycles, board finish, soldering method, tape width, and removal timing. ENIG, hard gold, solder mask, bare copper, and component surfaces may respond differently to the same adhesive. Flux chemistry, cleaning agents, board contamination, and storage conditions can also affect adhesion and residue.

For narrow gold fingers, select a slit width that covers the contact area without interfering with adjacent solder joints. Firm pressure along the tape edge helps prevent flux or coating from migrating underneath. Avoid excessive stretching during application, because tension can cause edge lifting when the tape heats and cools.

Process Validation

“No residue” should be treated as a process result rather than an unconditional material claim. Before volume production, test the proposed grade on the actual PCB finish using the intended reflow or wave-solder profile, flux, dwell time, cleaning method, and removal temperature. Confirm that the tape remains flat, protects the required area, removes without damaging the finish, and leaves no unacceptable adhesive transfer.

Customization and Supply

Mavis supplies standard rolls, precision-slit rolls, discs, tabs, frames, and custom die-cut shapes. Send the drawing or required width, length, thickness, quantity, liner requirement, application surface, and thermal profile. For automated placement, include roll direction, core size, pitch, and maximum splice requirements.

Frequently Asked Questions

Is amber polyimide tape the same as Kapton tape?

“Kapton” is a trademark associated with specific polyimide film products. Amber polyimide tape is a general product category. If a specific film brand, origin, or certification is required, state it in the inquiry so the quotation can identify the exact construction.

Will it survive lead-free reflow?

Appropriate grades are used for short high-temperature soldering cycles, but performance depends on the full temperature profile and dwell time. Validate a sample in the actual process.

Can you make narrow rolls or die-cut masks?

Yes. Precision slitting and die-cutting are available for gold fingers, pads, contacts, and repeatable production masking.

For another high-temperature option, see our PCB masking tape, or contact Mavis with your board finish and soldering profile.
